WATERTON LAKE

2462 SQ FT | 3-4 BEDROOMS | 2.5 BATHS | 2 BAYS | 59 FT WIDE | 65 FT DEEP

Skip to product information
1 of 6

Single-Level European Lodge Home with Courtyard

Regular price $2,008.00 CAD
Regular price Sale price $2,008.00 CAD
Sale Sold out
Select File Type To Purchase:

Images shown on this page may have been modified from original plan.

HOUSE PLAN FEATURES:

  • Gated courtyard entrance with an outdoor fireplace for entertaining
  • Study / fourth bedroom with a courtyard entry perfect for a home office
  • Great room with a statement fireplace
View full details

SQUARE FOOTAGE

Main Level 2462
Total Finished 2462
Garage 495
Patio 187
Outdoor Living 435 Courtyard

OTHER SPECIFICATIONS

Bedrooms 3-4
Full Bathrooms 2
Powders 1
Garage Bays 2
Garage Entry Side
Width of House 59 ft
Depth of House 65 ft
Building Height 20 ft
Ceiling Height - Main Level 9’, 12-7", Vaulted
Foundation Type Combo Slab-Crawl
Exterior Wall Construction 2x6
Roof Pitches 6/12

Waterton Lake is a beautifully designed single-level ranch that combines functionality with European lodge charm. This versatile layout appeals to growing families, retirees, and builders, offering both stylish details and practical living spaces. With its European lodge architectural style, Waterton Lake delivers a timeless, cozy ambiance while providing all the modern conveniences needed for comfortable living.

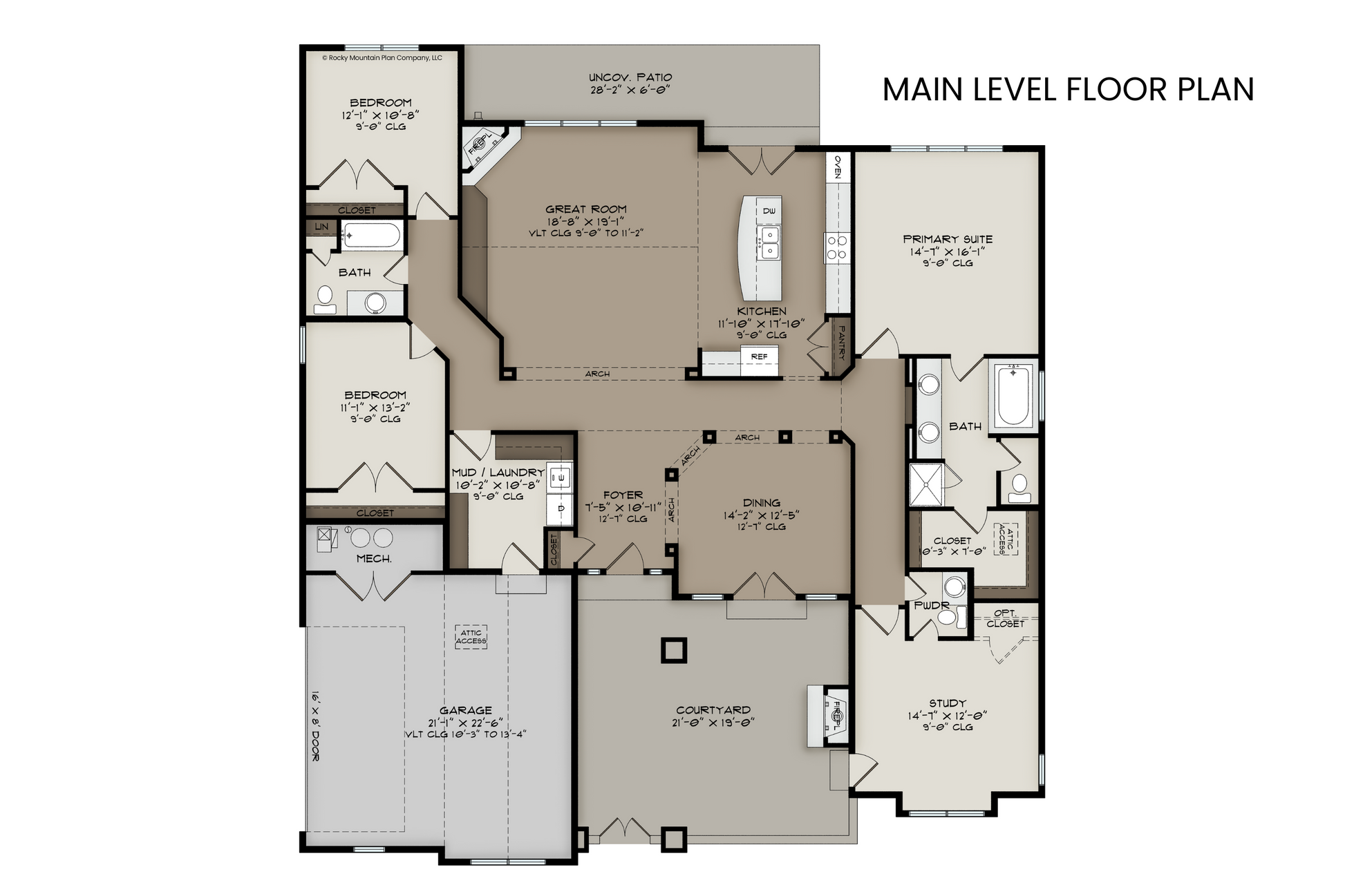

Key Features of the Waterton Lake Plan

  • Single-Level European Lodge Design: 2,462 sq ft layout featuring 3 bedrooms, 2.5 baths, and a side-entry 2-car garage, perfect for growing families, downsizers, or builders looking for a timeless design.

  • Charming Courtyard Entrance: Enter through a gated 435 sq ft courtyard complete with a stunning outdoor fireplace, ideal for welcoming guests or enjoying an evening by the fire.

  • Elegant Great Room with Vaulted Ceilings: The great room features rear site views, a corner fireplace, vaulted ceilings, and direct patio access, creating an inviting space for gatherings and relaxation.

  • Spacious Kitchen with Island: The open kitchen includes a large island, ample counter space, and flows seamlessly into the dining area, making it ideal for family meals and entertaining guests.

  • Private Primary Suite: Situated at the rear of the home for privacy, the primary suite includes a walk-in closet and a bath with a separate tub and shower.

  • Flexible Bedroom and Office Spaces: Two additional bedrooms share a bathroom, while a spacious study features a private entrance from the courtyard, making it ideal as a home office or a fourth bedroom.

  • European Lodge Charm: Arched openings throughout the home add refined, elegant touches that elevate the warm, cozy ambiance of the European lodge style.

Ideal for a Range of Lifestyles

The Waterton Lake plan is perfect for a range of homeowners, from growing families to those looking to downsize into a single-level home. Its elegant design and functional layout offer a warm and welcoming environment that is also practical and adaptable.

Explore more one-level house plans to find the perfect fit for your next project.

Why Choose the Waterton Lake Plan?

  • Versatile Single-Level Layout: 2,462 sq ft of living space makes it ideal for a variety of lifestyles, from downsizing to family living.

  • Welcoming Courtyard with Fireplace: The gated courtyard creates a perfect space for outdoor entertaining or quiet relaxation.

  • European Lodge Charm: The warm, elegant design combines the best of rustic charm and refined architectural elements.

  • Flexible Living Spaces: The study can function as a home office or an additional bedroom, providing flexibility to suit changing needs.

If you’re considering more homes with European characteristics, explore our Old World House Plans Collection for similar designs that combine timeless proportions and modern practicality.

This floor plan is also available in a modern transitional style as Emma Lake.

QUESTIONS ABOUT WATERTON LAKE:

Exterior view of Waterton Lake, a European lodge-style single-level home with a gated courtyard and charming architectural details.

Can I purchase a Bid Set for this plan?

Bid Sets may be purchased for $500, which can be used as a credit toward the purchase of a Digital PDF or CAD House Plan Set. A Bid Set includes the annotated floor plan sheets and elevation views of the home plan and may be used to obtain estimates from builders so you will have an idea of the cost to build the home. Bid Sets are marked “Not For Construction” and are copyright-protected. Get in touch with us to request a Bid Set of the plan you’d like.

When will I receive my plan files?

Upon purchase and agreement to the terms of our license agreement, your plan files will be electronically delivered in 1-2 business days.

Please note that each plan may have a slightly different estimated timeline for file delivery, so make sure to check before purchasing.

Building Restrictions:

No building restrictions.

What's the difference between Digital PDF and CAD files?

The right plan format for you depends on your situation and how much versatility you may need.

Digital PDFs are suitable for many uses if you don’t have major site or plan changes. These files are not directly editable, meaning that changes may be more difficult to make, though some minor adjustments may be made via redline by your local professionals.

When you add the CAD (Computer-Aided Design) files option to your plan purchase, you’ll receive the Digital PDF Plan Set plus the CAD files of each plan sheet (.dwg format) that allow for further customization and options.

CAD files are digital files that contain detailed and accurate technical drawings and specifications of a design. CAD files are commonly used by building and design professionals to create and modify house plans, and this allows you much more flexibility in making sure your home design meets your needs and works best for your site.

For a more detailed comparison of the two digital options, check out: About Our House Plans.

Can I make changes to my house plan?

Absolutely! A great option for most clients is to purchase the plan you love and work with a local designer to make the changes and customizations you need. Your local professionals will be most familiar with your building codes and site-specific requirements, and they can help prepare everything you need to obtain a building permit along with the plan customizations you’d like. They will typically need or prefer the CAD version of the plan to do their work most efficiently.

If all you need are minor changes – like flipping / mirroring the plan to create a right-reading reverse plan – we can do those for you at a flat rate in just a few days. We’re happy to provide a quote for any complex changes you’d like to make as well – such as increasing or decreasing the square footage, designing a basement, changing the ceiling heights or even changing the architectural style. These types of customizations take more time and consultation, and can range in cost. We offer customization services through our founding company, the Colorado-based custom home design firm, LGA Studios. Click here to learn more.

What else do I need before I can build with my house plan?

To get a full understanding of what’s required in your area, we recommend visiting your local building department either in person or via their website. They will often have resources, recommendations, and a checklist of everything you need in order to submit for a building permit before breaking ground on your site.

Below are a few common items you may need:

  • A Site Plan: A site plan is a drawing that shows where the house is going to be located on your property and depicts the driveway / access and any grading and water management / septic requirements.
  • Site-Specific Engineering: Because local regulations and site variations differ widely, we do not offer “pre-engineered” plans, and you’ll need to obtain a site-specific engineering analysis from a licensed professional in the state where the home will be built.

    Some areas of the country have especially strict engineering codes – with good reason – such as hurricane-risk zones along the Gulf Coast or earthquake-prone areas of California. These areas may require Geological or Seismic Engineering and the addition of retaining walls or wall bracing. Your builder or building department can provide references to trusted professionals in your area.
  • Local Code Compliance: Our home plans meet the International Residential Code (IRC) in effect when the plan was designed. The IRC is the base code typically adopted by all states, though states will often add their own adjustments on top of the base code due to state-specific geographical conditions.

    Some areas have specific energy codes that have to be followed, and may require Mechanical, Electrical, and Plumbing (MEP) plans, along with local code updates. It is your responsibility to comply with all local building codes, zoning requirements, and other applicable laws, regulations, ordinances, and conditions set forth by your planning commission.
  • A Professional “Stamp”: Several states – including California, Illinois, New Jersey, New York, and Nevada – require that your home design and entire set of construction drawings be reviewed and stamped by a local professional, such as a structural engineer or architect. Your local building department will let you know if this is required in your state.
